Rule 54.4-D2



54.4-D2)    Center Line Clearances For 750 Volts and Above:  The clearances referred to in Table 1, Case 8 Columns E and F, apply as follows with respect to voltage.



750-7500volts

15 inches

7500-46,000 volts

18 inches

46,000 volts and above

18 inches plus ½ inch per kV in excess of 46kV



These clearances from center line of pole need not apply to conductors of 750-7500 volts and 7500-22,500 volts supported in vertical configuration in partial underground distribution provided: a) such conductors have clearances from surface of pole of not less than 6 inches, b) in tangent construction, conductors so supported are not attached to more than one side of pole, and c) in dead-end construction conductors so supported are not attached to more than three sides of a pole (there being four sides, see App. G, Fig. 89).



Strikeout and Underline Version

Rule 54.4-D2



54.4-D2)    Center Line Clearances For 750 Volts and Above:  The clearances referred to in Table 1, Case 8 Columns E and F, apply as follows with respect to voltage.



750-7500volts

15 inches

7500-46,000 volts

18 inches

46,000 volts and above

18 inches plus ½ inch per kV in excess of 46kV



These clearances from center line of pole need not apply to conductors of 750-7500 volts and 7500-22,500 volts supported in vertical configuration in partial underground distribution provided: a) such conductors have clearances from surface of pole of not less than 6 inches, b) in tangent construction, conductors so supported are not attached to more than one side of pole, and c) in dead-end construction conductors so supported are not attached to more than three sides of a pole (there being four sides, see App. G, Fig. 89 Fig. 54-3).





Final Version

Rule 54.4-D2



54.4-D2)    Center Line Clearances For 750 Volts and Above:  The clearances referred to in Table 1, Case 8 Columns E and F, apply as follows with respect to voltage.



750-7500volts

15 inches

7500-46,000 volts

18 inches

46,000 volts and above

18 inches plus ½ inch per kV in excess of 46kV

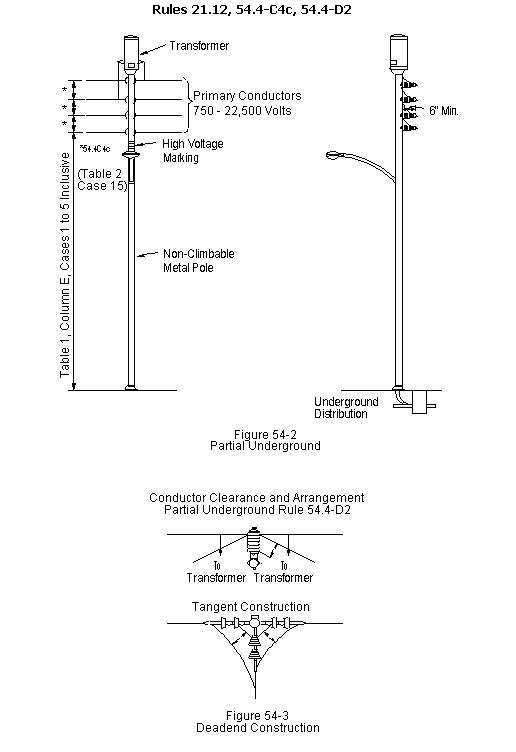

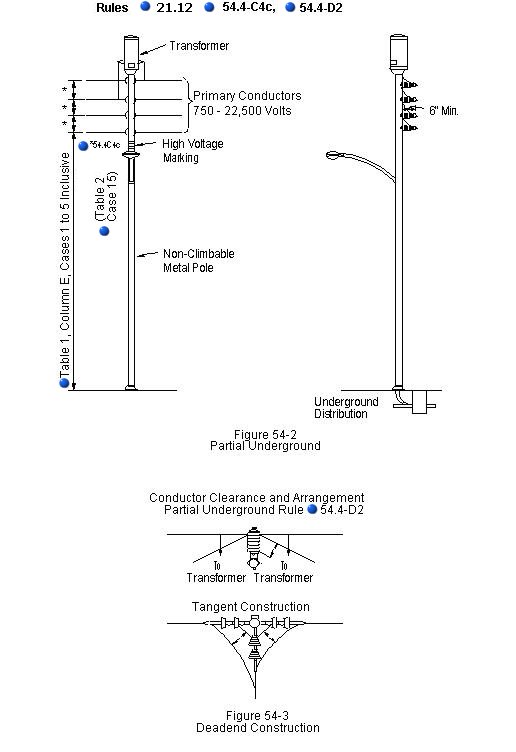

These clearances from center line of pole need not apply to conductors of 750-7500 volts and 7500-22,500 volts supported in vertical configuration in partial underground distribution provided: a) such conductors have clearances from surface of pole of not less than 6 inches, b) in tangent construction, conductors so supported are not attached to more than one side of pole, and c) in dead-end construction conductors so supported are not attached to more than three sides of a pole (there being four sides, see Fig. 54-3).
